Highlight:
Wet Technology Sand Making Machine
, Wet Technology m sand making machine
, High Performance Sand Making Machine

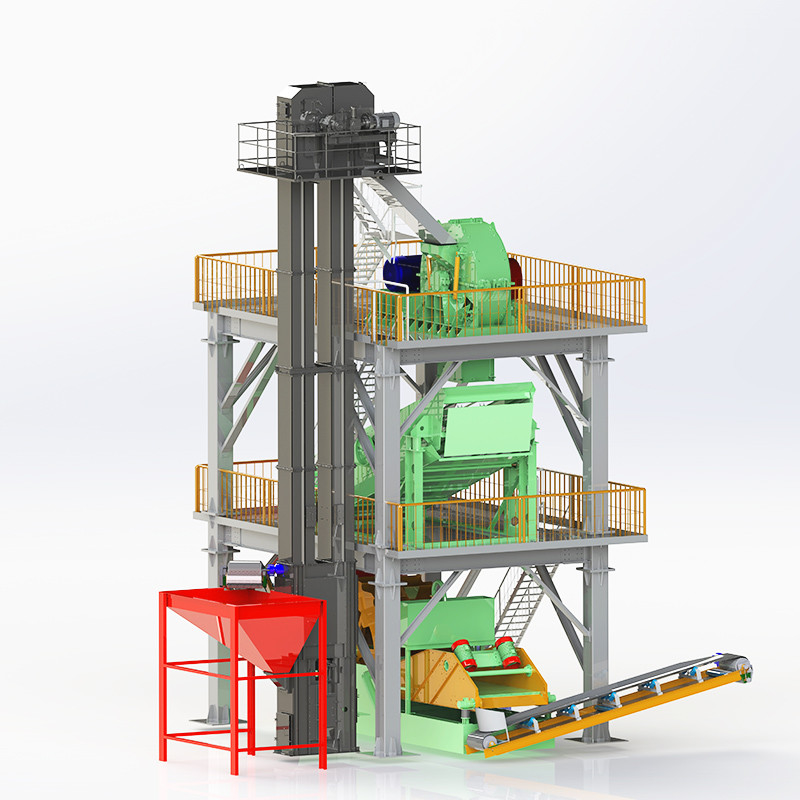

Wet Technology High Performance Sand Making Machine Stationary Installation Method
PWS80 Wet Technology Sand System Mechanism Sand Making Machine
Advantages of M-sand:
According to industry experts m-sand is:
- Well graded and in the required proportion
- Does not contain any organic and soluble compound that affects the setting time and properties of cement, thus the required strength of concrete can be maintained
- Does not have the presence of impurities such as clay, dust and silt coatings; increases water requirement in case river sand impairs the bond between cement paste and aggregate. This increases the quality and durability of concrete
Additionally, M-sand is obtained from specific hard rock by using state- of-the-art international technology. This retains the required property of the sand.
Plus, it is cubical in shape and is manufactured by using technology like high carbon steel followed by the rock process which is synonymous with natural processes in river sand information. Also, modern and imported machines are used to produce m-sand to ensure the required grading zone for the sand.
Product Introduction:
PW series dry/wet mechanism sand system, with its core equipment - sand making machine, equipped with our company's patented technology equipment - PW or PWS series horizontal shaft impact crusher.
Using various types of stone materials that meet national standard building materials such as river pebbles, granite, limestone as raw materials, it adopts a rational integrated fully enclosed or semi-enclosed layout. It features a brand-new design concept and unique high-efficiency, environmentally friendly energy-saving properties. Additionally, it utilizes pulse centralized dust collection and ash collection to produce mechanism sand. This system integrates efficient sand production, optimized particle size, controllable stone powder, adjustable grading, controllable moisture, and environmentally compliant standards into one sand and gravel aggregate system equipment.
Performance Characteristics:
- Low energy consumption
- Low wear
- High sand production rate
- Excellent shaping effect
- Controllable grading (sand making machine controls fineness modulus).
Technical Parameter:
| Model |
Max. feeding particle size(mm) |
Capacity(t/h) |
Particle size(mm) |
Output(t/h) |
Total power |
| PWS-80 |
≤50 |
120-140 |
0-5 |
70-90 |
436 |
PS: The above data is based on materials with crushing hardness (Mohs hardness of 3-7.5). Depending on the nature of materials with
different hardness, feed grading, moisture content, clay content, bulk density, and characteristics may vary. All data is for reference only.
PW Series Equipment Layout Space-WET Technology:
On-site Installation View:
