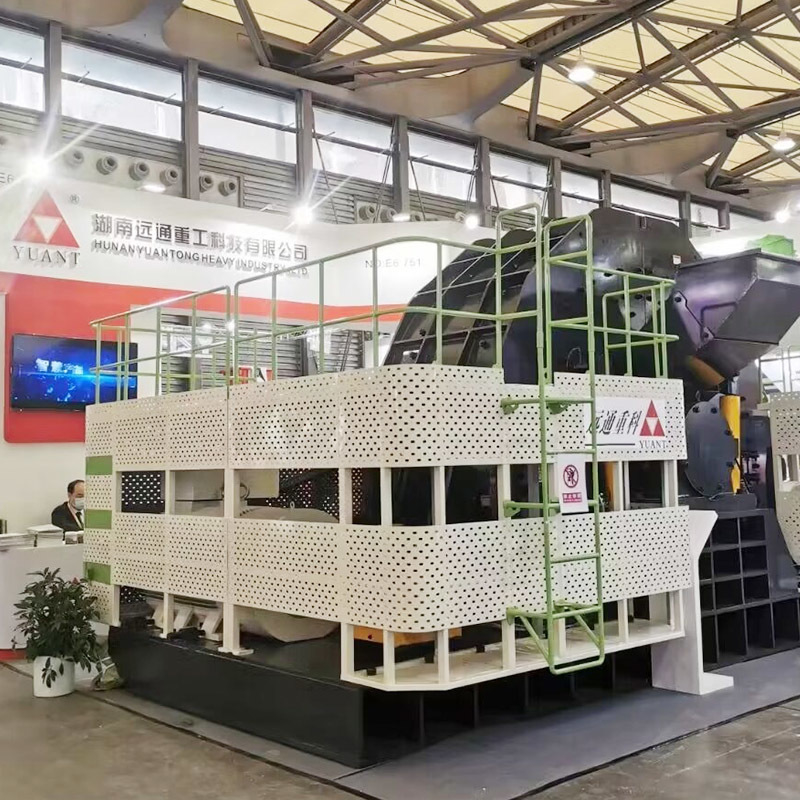

Name: Quartz Horizontal Shaft Impactor Crushing Machine for Construction Sand Plant
Brand: Hunan Yuantong Heavy Industry Co., Ltd.
SKU: PW4010
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Yuantong

Certification: ISO

Model Number: PW4010

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Small items: wooden box; Large device: container

Delivery Time: 1-8 Weeks

Payment Terms: L/C,T/T

Supply Ability: 200 sets/year

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	Horizontal Shaft Impactor	Warranty:	12 Months
Installation Method:	Stationary	Power Source:	Electricity
Application:	Construction Sand Plant	Color:	Customizable
Capacity:	Varies Depending On Plant Size	Control System:	Automated

Product Name:	Horizontal Shaft Impactor
Warranty:	12 Months
Installation Method:	Stationary
Power Source:	Electricity
Application:	Construction Sand Plant
Color:	Customizable
Capacity:	Varies Depending On Plant Size
Control System:	Automated

Quartz Horizontal Shaft Impactor Crushing Machine for Construction Sand Plant

Quartz Horizontal Shaft Impactor Crushing Machine for Construction Sand Plant

Features:

No investment required in primary crushing equipment.

Product Name	Capacity	Power	Input material	Output function	End Users
Horizontal Shaft Impactor Crusher	200 t/h	630kw	Quartz	Cement raw materials	for Glass raw materials plant, construction sand and gravel processing plant

Example Applications:

Many leading cement companies have adopted HSI crushing technology and achieved impressive technical and economic results:

Company	Application Results	Energy Reduction	Grinding Efficiency Improvement
Major Cement Plant	3 million tons of clinker/year	25% reduction	30% increase
Southern Cement Plant	Replaced traditional hammer crusher	20–22% reduction	25–30% increase

Strong Features:

1	Improved Grinding Efficiency & Reduced Energy Consumption
2	Better Particle Size Distribution & Quality
3	Lower Equipment Wear and Maintenance Costs
4	Enhanced Automation and Smart Manufacturing
5	Environmental and Green Benefits

Technical Parameters:

Model	Max. feed size(mm)	Capacity(t/h)	Product size(mm)	Output(t/h)	Motor power(kw)	Dimensions(mm)
PW2006	≤70	40-50	0-5mm	25-30	90	360x150x207
			5-31.5mm	10-15
PW2008	≤80	60-80	0-5mm	40-55	160	362x191x210
			5-31.5mm	15-20
PW3008	≤90	90-110	0-5mm	55-65	250	385x242x255
			5-31.5mm	20-30
PW3308	≤100	120-140	0-5mm	70-90	315	432x296x266
			5-31.5mm	30-40
PW3608	≤100	160-200	0-5mm	110-130	400	518x318x312
			5-31.5mm	30-40
PW4010	≤100	300-400	0-5mm	200-250	2x315(400)	704x418x370
			5-31.5mm	60-80

Packing and Shipping:

Product Packaging:

The impact crusher will be securely packed in a wooden crate to ensure its safety during transportation.
All necessary parts and accessories will be included in the package.

Shipping:

The impact cone crusher will be shipped via a reliable and efficient shipping service.
The shipping cost will be calculated based on the destination and weight of the package.
Delivery times may vary depending on the location of the custom.
